Product Description

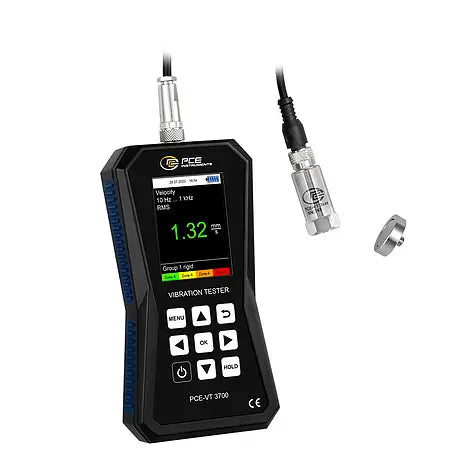

The PCE-VT 3700 is a professional portable vibration meter designed for condition monitoring and vibration analysis of machines and mechanical systems. It measures vibration acceleration, vibration velocity, and vibration displacement, helping technicians quickly identify machine imbalance, bearing problems, and other mechanical issues.
The device supports ISO 10816-3 vibration evaluation, automatically analyzing measurement results and providing a simple good/bad condition assessment. Its compact design, color graphic display, and easy operation make it suitable for industrial maintenance and preventive inspections.
Key Features
- Measures:
- Vibration acceleration
- Vibration velocity
- Vibration displacement
- Automatic ISO 10816-3 evaluation.
- Displays vibration severity and machine condition status.
- Color graphic LCD display.
- Peak Hold function.
- Measurement parameters:
- RMS
- Peak
- Peak-to-Peak
- Crest Factor
- Switchable metric and imperial units.
- Supplied with vibration sensor, magnetic adapter, batteries, and carrying bag.
Technical Specifications
Vibration Acceleration
- Measuring Range: 0.0 – 399.9 m/s²
- Resolution: 0.1 m/s²
- Frequency Range: 10 Hz – 10 kHz
Vibration Velocity
- Measuring Range: 0.00 – 399.99 mm/s
- Resolution: 0.01 mm/s
- Frequency Range: 10 Hz – 1 kHz
Vibration Displacement
- Measuring Range: 0.000 – 3.999 mm
- Resolution: 1 µm
- Frequency Range: 10 Hz – 200 Hz
General Specifications
- Accuracy: ±2% (at 160 Hz)
- Display: 2.8-inch LCD
- Power Supply: 3 × AA 1.5 V batteries
- Protection Rating: IP52
- Dimensions: 165 × 85 × 32 mm
- Weight: Approx. 239 g
Applications
- Industrial machine condition monitoring.
- Detecting mechanical imbalance and misalignment.
- Bearing and motor inspection.
- Preventive maintenance programs.
- Monitoring pumps, fans, compressors, and rotating machinery.
- Factory and workshop vibration analysis.
