Description
Product Description

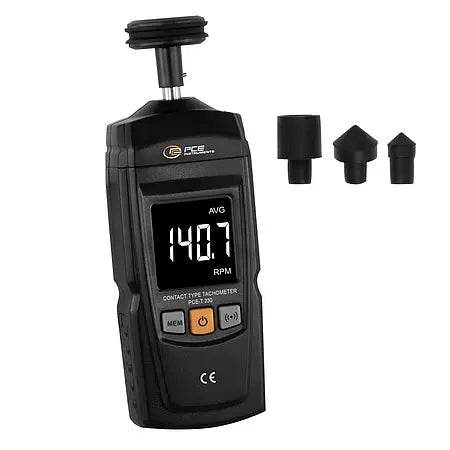

The PCE-T 230 is a professional contact handheld tachometer designed to measure the rotational speed of rotating components such as motors, shafts, rollers, and mechanical systems. It provides accurate measurements using direct contact with the rotating surface through interchangeable adapters.
With its compact design, fast measurement response, and multiple measurement functions, the PCE-T 230 is an ideal tool for industrial maintenance, machine inspection, and preventive maintenance applications.
Key Features
- Contact measurement of rotational speed.
- Measures rotational speed up to 19,999 RPM.
- Supports multiple measurement units:
- RPM (revolutions per minute)
- m/min (meters per minute)
- ft/min (feet per minute)
- Measurement functions:
- MIN – Minimum value
- MAX – Maximum value
- LAST – Last measured value
- AVG – Average value
- Fast sampling time of 0.8 seconds.
- Large 1.8-inch LCD display.
- Automatic power-off after 60 seconds.
- Compact and lightweight handheld design.
- Supplied with different adapters for various measurement applications.
Technical Specifications
- Measurement Range:
- 0.5 – 9,999 RPM
- 1 – 19,999 RPM
- Resolution:
- 0.1 RPM (up to 999.9 RPM)
- 1 RPM (above 1000 RPM)
- Accuracy: ±(0.05% of reading + 1 digit)
- Measurement Rate: 0.8 seconds
- Display: 1.8-inch LCD
- Units: RPM, m/min, ft/min
- Power Supply: 2 × AAA 1.5 V batteries
- Protection Rating: IP20
- Weight: Approx. 110 g
- Dimensions: 144 × 51 × 30 mm
Applications
- Measuring motor and machine rotational speed.
- Checking shafts, rollers, and rotating components.
- Industrial equipment maintenance.
- Preventive maintenance inspections.
- Testing fans, pumps, and mechanical systems.
- Engineering and workshop applications.
