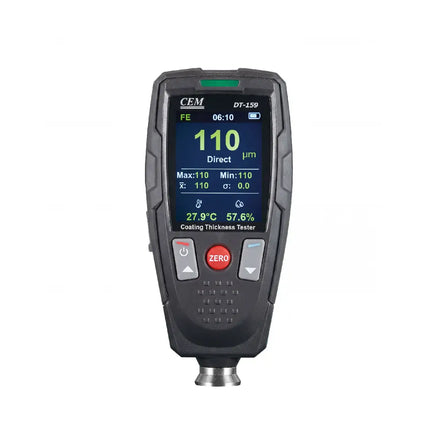

The CEM DT-159 device is the most advanced and professional solution for inspecting coating thickness on various metal surfaces. The device features a 2.4-inch color TFT LCD screen with automatic rotation, and it relies on dual measurement technology that automatically detects the type of metal, whether magnetic or non-magnetic.
Key Features:
-
Dual Measurement Technology: Automatic selection between magnetic induction (for ferrous metals) and eddy current (for non-ferrous metals).
-
Smart Color Display: A 2.4-inch screen that automatically rotates 4 angles (0, 90, 180, 270 degrees) for easy reading in all positions.
-
Comprehensive Environmental Monitoring: Built-in sensors for measuring temperature, humidity, and dew point during inspection.
-
Professional Operating Modes: Supports multiple measurement modes including DIRECT, GROUP, and the specialized SSPC mode.
-
Advanced Data Analysis: Clearly displays readings, showing the maximum (MAX), minimum (MIN), average (AVG), and standard deviation.
-
Data Transfer Interface: Equipped with a USB input for transferring data to a computer for storage and analysis.
Technical Specifications (Model DT-159):
| Model |
CEM DT-159 (Professional Coating Thickness Tester) |
| Operating Principle |
Ferrous metals (F): Magnetic Induction / Non-ferrous metals (N): Eddy Current |
| Measurement Range |
0 to 2000 micrometers (0~2000um) |
| Accuracy |
±(2% + 2 micrometers) |
| Minimum Substrate Thickness |
0.3 mm to 0.5 mm depending on metal type |
| Temperature and Humidity Measurement |
0~50 °C / 0~100% Humidity |
Ideal Applications:
- Automobile inspection labs to estimate paint thickness and detect repainting operations.
- Metal construction companies and industrial paint manufacturers for quality assurance.
- Coating quality inspection in electrical appliances and heavy equipment.
