Description
Product Description

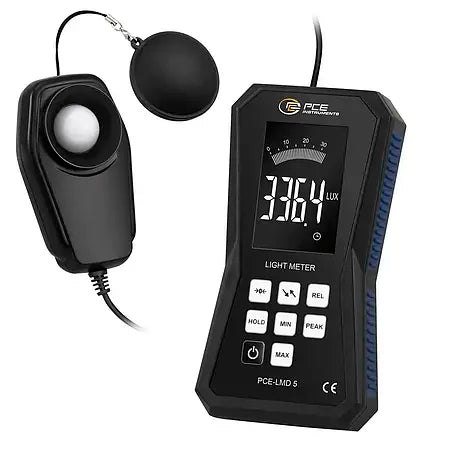

The PCE-LMD 5 is a professional digital light meter (lux meter) designed to measure illumination levels accurately in various environments. It is used to evaluate lighting conditions in workplaces, greenhouses, production areas, photography studios, and other applications where precise light measurement is required.
The device uses a silicon photodiode sensor with a spectral filter to provide accurate light intensity measurements. It features a large backlit LCD display, rechargeable battery, and supports measurements in Lux and Footcandle (fc) units.
Key Features
- Measures illumination intensity from 0 to 400,000 Lux.
- Measurement units:
- Silicon photodiode sensor with spectral filter.
- Large backlit LCD display.
- Rechargeable built-in Li-Ion battery.
- Micro-USB charging interface.
- Functions:
- MIN – Minimum value
- MAX – Maximum value
- HOLD – Data hold
- Peak Hold – Detects short light peaks
- Optional ISO calibration certificate available.
Technical Specifications
- Measurement Range:
- 0.0 – 999.9 Lux
- 1000 – 400,000 Lux
- Resolution:
- 0.1 Lux (low range)
- 1 Lux (high range)
- Accuracy:
- ±5% of reading + 10 digits (standard light A)
- ±10% of reading + 10 digits (other conditions)
- Sensor Type: Silicon photodiode with spectral filter.
- Sampling Rate: 4 Hz.
- Peak Hold Response: 10 µs.
- Display: Backlit LCD.
- Power Supply: 3.7 V Li-Ion rechargeable battery.
- Interface: Micro-USB.
- Dimensions:
- Meter: 162 × 88 × 32 mm
- Sensor: 102 × 60 × 25 mm
- Weight: Approx. 320 g.
Applications
- Workplace lighting inspection.
- Industrial and production facility lighting measurement.
- Greenhouse lighting monitoring.
- Photography studio light measurement.
- Building and facility inspections.
- Environmental lighting analysis.
