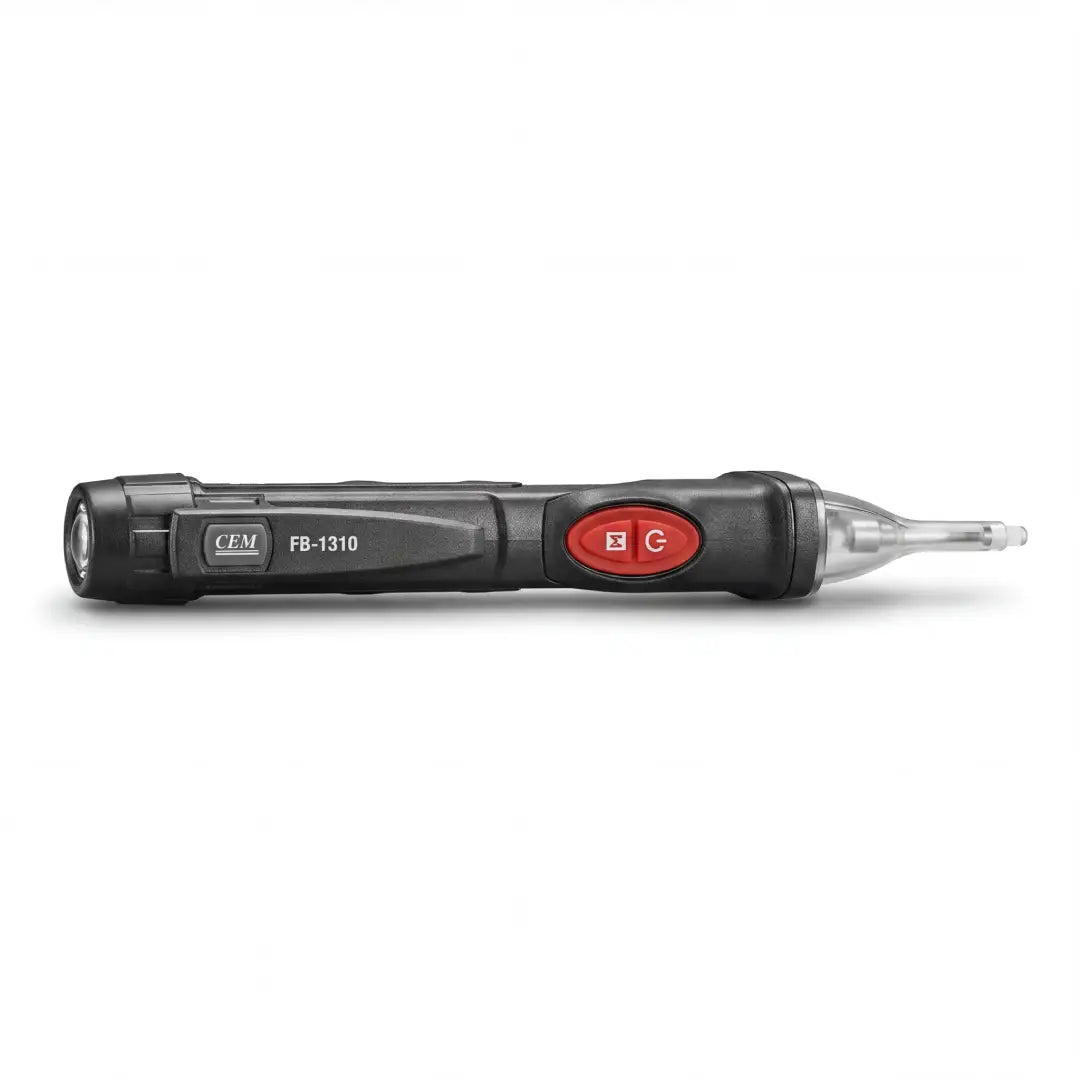

The CEM FB-1310 is an innovative and highly accurate dual-function tool, combining a Non-Contact AC Voltage Detector with an Optical Fiber Detector. This device is designed to provide quick and safe solutions for technicians and engineers in the telecommunications and electrical fields, facilitating cable inspection and fault identification without the need for direct contact.
Key Features:
-
Optical Fiber Testing: Quickly identifies fiber activity, polarity, and active fiber connection.
-
Wide Compatibility: Supports testing of single-mode, multimode, UPC, and APC connectors and ports.
-
Non-Contact AC Voltage Detector: Safe detection of electrical voltage from 50 to 1000 VAC (50/60 Hz).
-
Smart Alerts: Equipped with an LED indicator and an audible buzzer to confirm signal or voltage presence.
-
Practical Design: Features a built-in flashlight for working in dark areas and a portable, pocket-sized design.
Technical Specifications (Model FB-1310):
| Model |
FB-1310 (Non-Contact AC Voltage & Optical Fiber Detector) |
| Voltage Detection Range |
50VAC to 1000VAC |
| Fiber Wavelength Range |
850nm ~ 1700nm |
| Safety Rating |
CAT III 1000V |
| Battery Type |
2x AAA 1.5V (included) |
| Operating Environment |
0 to 50 °C |
| Maximum Operating Altitude |
2000 meters |
Ideal Applications:
- Inspecting fiber optic cables in home and industrial networks.
- Ensuring the safety of electrical connections before maintenance.
- Rapidly identifying faults in jumpers and optical connections.
