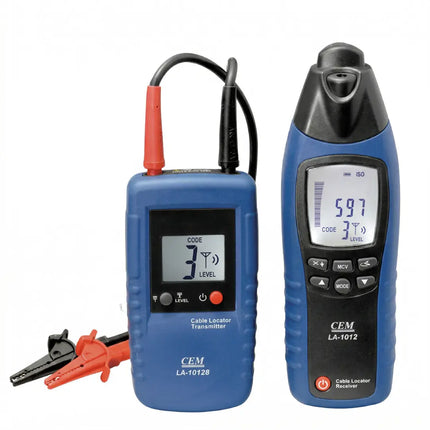

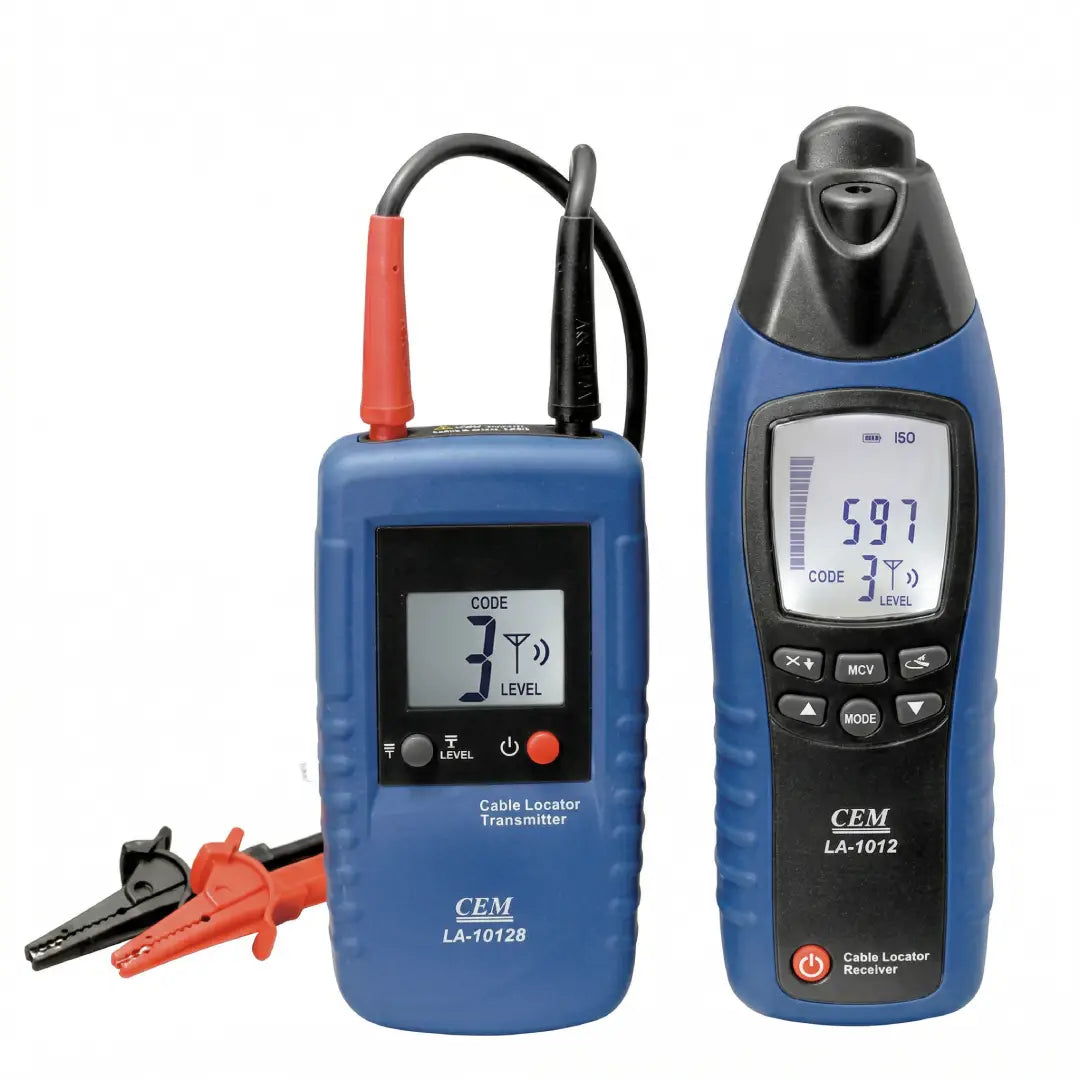

The CEM LA-1012 is a professional general-purpose cable detector, making it the ideal tool for tracing cables inside walls and underground. The device can locate fuses and circuit breakers, detect breaks and short circuits in cables and electric underfloor heating systems, and can also be used to trace metallic water and heating pipes.
Key Features:
-
Integrated System: The kit consists of a transmitter and a receiver that work together with high precision.
-
For Live and Dead Cables: Works on all applications, whether cables are live or dead, without the need for additional tools.
-
Digitally Coded Signal: Digital signal encryption technology ensures clear and accurate path identification and prevents interference.
-
Advanced LCD Screens: The transmitter displays the transmission level, code, and external voltage, while the receiver displays the received signal level and live voltage status.
-
Manual and Automatic Control: The ability to adjust reception sensitivity manually or automatically depending on the site conditions.
-
Built-in Illumination: The receiver has a built-in torch for working in dark or poorly lit areas.
Technical Specifications (Model LA-1012):
| Voltage Measurement Range (Transmitter) |
12V, 50V, 120V, 230V, 400V |
| Frequency Range (Transmitter) |
0 ~ 60Hz |
| Output Signal (Transmitter) |
125kHz |
| Tracing Depth (Receiver) |
0 ~ 2 meters (underground/walls) depending on conditions |
| Mains Voltage Detection (Receiver) |
0 ~ 0.4 meters |
| Dimensions (Transmitter) |
190mm x 60mm x 37mm |
| Dimensions (Receiver) |
128mm x 68mm x 30mm |
Ideal Applications:
- Tracing electrical cables behind concrete walls or underground.
- Detecting open circuits or short circuits in wires.
- Identifying the breaker responsible for a specific outlet or point in the main panel.
- Tracing metallic utility pipes (water, gas, heating) within facilities.
Included Accessories:
- Transmitter and receiver.
- 2 x 9V batteries.
- Crocodile clips and test leads.
- Deluxe carrying case for protection and portability.
