Description
Product Description

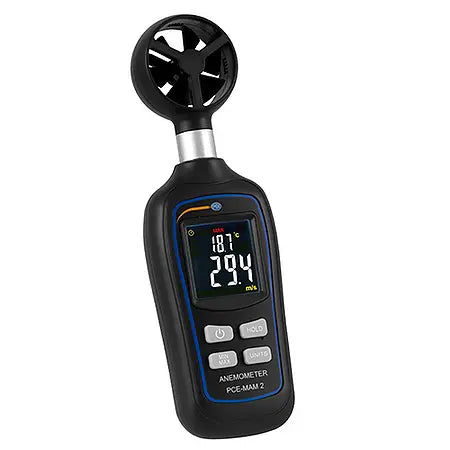

The PCE-MAM 2 is a compact and portable air velocity and temperature meter designed to measure wind speed, airflow, and ambient temperature. Thanks to its small size and lightweight design, it is easy to carry and ideal for quick measurements in the field.
The device uses an impeller sensor to provide fast and accurate air velocity measurements, making it suitable for HVAC applications, ventilation inspections, environmental monitoring, and outdoor wind measurements.
Key Features
- Measures air velocity and wind speed.
- Measures ambient temperature.
- Compact and lightweight design for portable use.
- Backlit LCD display for easy reading.
- Supports multiple air velocity units:
- m/s (meters per second)
- km/h (kilometers per hour)
- mph (miles per hour)
- Knots
- ft/min (feet per minute)
- MIN / MAX function for recording minimum and maximum values.
- Low battery indicator.
- Automatic power-off function to save battery life.
- Durable design suitable for daily field measurements.
Technical Specifications
- Air Velocity Range: 0.4 – 30 m/s
- Resolution: 0.1 m/s
- Accuracy: ±(3% + 0.3 m/s)
- Temperature Range: -20 to +70 °C
- Temperature Resolution: 0.1 °C
- Temperature Accuracy: ±1.5 °C
- Measurement Interval: 300 ms
- Power Supply: 3 × AAA 1.5 V batteries
- Battery Life: Approx. 60 hours of continuous operation
- Dimensions: 178.5 × 56 × 30.5 mm
- Weight: Approx. 84 g
Applications
- HVAC system inspection and maintenance.
- Measuring air velocity in ventilation ducts and outlets.
- Testing fan and ventilation system performance.
- Outdoor wind speed measurement.
- Environmental and workplace air monitoring.
- Engineering, maintenance, and educational applications.
