Description
Product Description

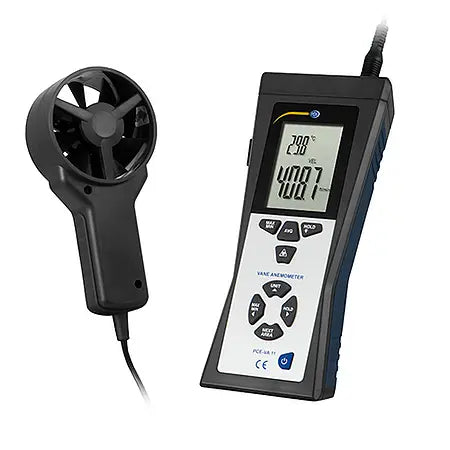

The PCE-VA 11 is a professional multifunction air velocity meter designed to measure air speed, air flow, air temperature, and infrared temperature. It is equipped with a vane sensor and a remote impeller probe, making it suitable for HVAC inspections, ventilation testing, environmental measurements, and industrial applications.
The device features a large backlit LCD display, multiple measurement units, and functions such as MIN/MAX values, average measurement, and data hold for convenient field operation.
Key Features
- Measures:
- Air velocity
- Air flow volume
- Ambient air temperature
- Infrared surface temperature
- Suitable for measuring low air velocities.
- Vane probe with 1.2 m cable for flexible measurements.
- Measurement units:
- m/s
- km/h
- ft/min
- mph
- knots
- Large backlit LCD display.
- Functions:
- MIN/MAX value recording
- AVG average value
- HOLD data hold
- Automatic power-off
- USB interface for data transfer.
- Portable handheld design.
Technical Specifications
Air Velocity Measurement
- Measuring Range:
- 0.4 – 30 m/s
- 1.4 – 108 km/h
- 80 – 5900 ft/min
- 0.9 – 67 mph
- 0.8 – 58 knots
- Resolution:
- 0.1 m/s
- 0.1 km/h
- 1 ft/min
- Accuracy: ±3% + 0.2 m/s
Air Temperature Measurement
- Range: -10 to 60°C
- Resolution: 0.1°C
- Accuracy: ±2°C
Infrared Temperature Measurement
- Range: -50 to 500°C
- Resolution: 0.1°C
- Accuracy:
- ±5°C (from -50 to -20°C)
- ±2% of reading or ±2°C (from -20 to 500°C)
General Specifications
- Display: Backlit LCD
- Sensor Type: Impeller vane sensor
- Cable Length: 1.2 m
- Power Supply: 9V battery
- Functions: MIN, MAX, AVG, HOLD
- Dimensions: 206 × 95 × 45 mm
- Weight: Approx. 313 g
Applications
- HVAC system inspection and maintenance.
- Air duct airflow measurement.
- Ventilation system testing.
- Air conditioning performance checks.
- Industrial airflow monitoring.
- Environmental measurements.
- Building and facility inspections.
