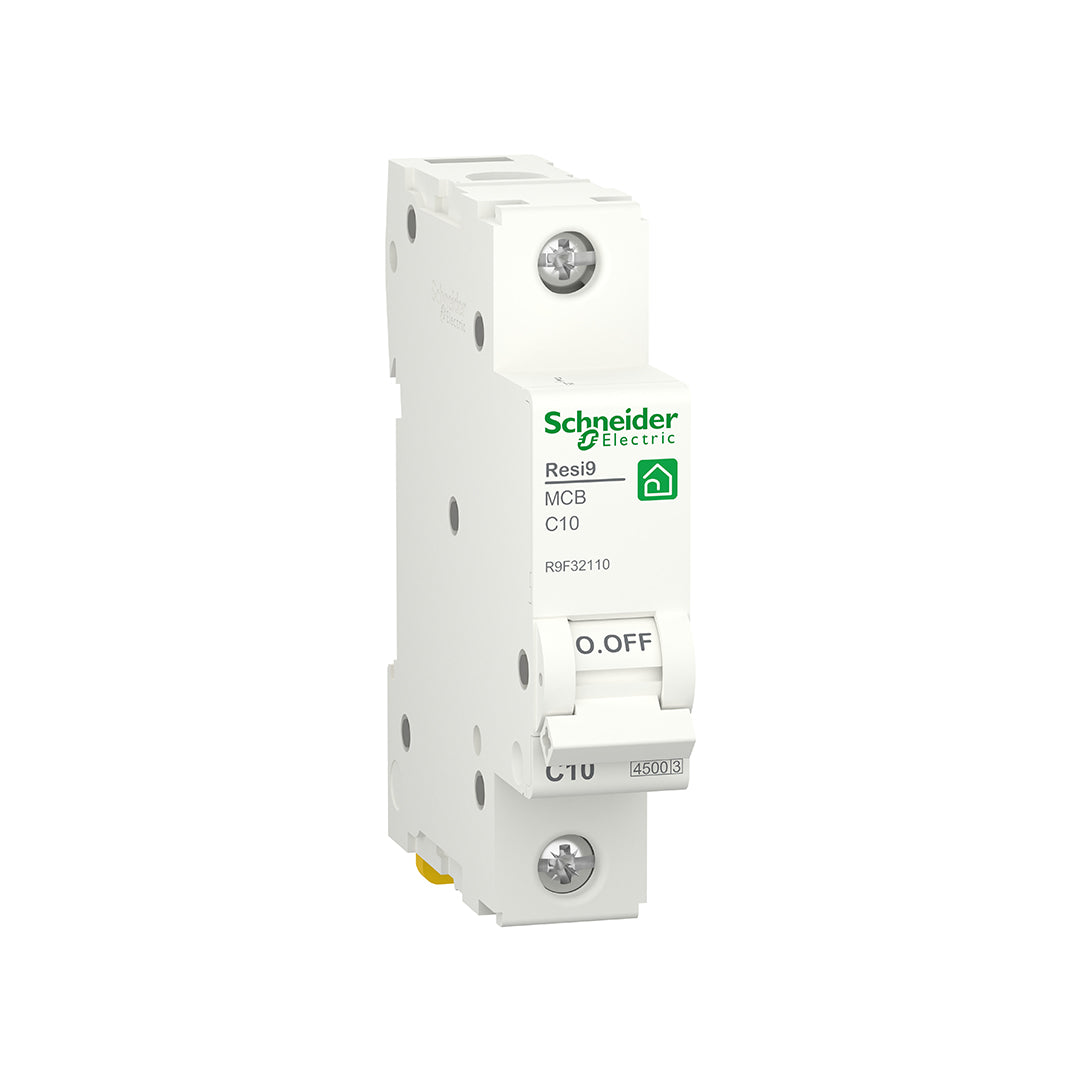

Schneider MCB 10A 1P R9F32110 Circuit Breaker is a selection among the MCB automatic breakers at Bashiti Stores, designed to protect the circuit from overloads and short circuits. In this model, the rated current is 10 Amperes and the number of poles is 1P. These specifications distinguish the model from others in the same series; match them with the circuit requirements and do not select a higher-rated breaker simply to increase the operating margin.
Practical Benefits
- Combines overload and short-circuit tripping functions in a single standard device.
- Distributing protection across independent circuits helps organize the panel and identify the affected circuit in case of a fault.
- Choosing the correct current, number of poles, and tripping curve provides the basis for aligning the breaker with the circuit requirements.
Technical Specifications for this Model
| Brand |
Schneider Electric |
| Series |
Resi9 |
| Model Reference |
R9F32110 |
| Rated Current |
10 A |
| Number of Poles |
1P |
| Tripping Curve |
C |
| Breaking Capacity (according to source) |
4.5kA |
| Rated Operating Voltage |
230VAC |
| Dimensions: W × H × D |
18 × 81 × 72 mm |
| Mounting |
DIN Rail |
Who Needs This Product?
Electricians, electrical contractors, and home or shop owners setting up a new panel or replacing a breaker that matches an existing circuit. Selection depends on the circuit design, cable cross-section, and installation method, rather than just the device type or the breaker's shape alone.
Installation and Verification — For Qualified Technicians
The following steps outline the general work sequence. Always refer to the manufacturer’s documentation for the R9F32110 reference to identify terminals and torque values. Never work on a circuit connected to a power supply.
- The technician must disconnect all power sources, secure them against reconnection, and verify the absence of voltage with an appropriate tool.
- Match the device reference, number of poles, current, and voltage with the panel diagram, and check conductor cross-sections and protection coordination.
- Mount the unit on the DIN rail or its designated position after ensuring compatibility, and identify the supply and output based on the manufacturer’s diagram for this reference.
- Perform connections according to the tightening torque, stripping length, and wire gauges specified in the model manual; do not reuse values from a similar device.
- Check the tightness of the connections and mounting, then close the covers and perform the required operational and protection tests before handing over the circuit.
Frequently Asked Questions Before Purchasing
Does this breaker protect against earth leakage?
An MCB is intended for overloads and short circuits and does not replace earth leakage protection. The need for an RCCB or RCBO should be reviewed within the panel design.
Should I replace a frequently tripping breaker with one with a higher amperage?
No. First, identify the cause of the tripping and check the load, cables, and connections. Increasing the amperage without assessment may leave the wires without proper protection.
What is the difference between Amperage and Breaking Capacity?
Amperage is the rated current of the breaker, while breaking capacity describes the level of short-circuit current it can safely interrupt under specified voltage and standard conditions. The two figures are not interchangeable.
