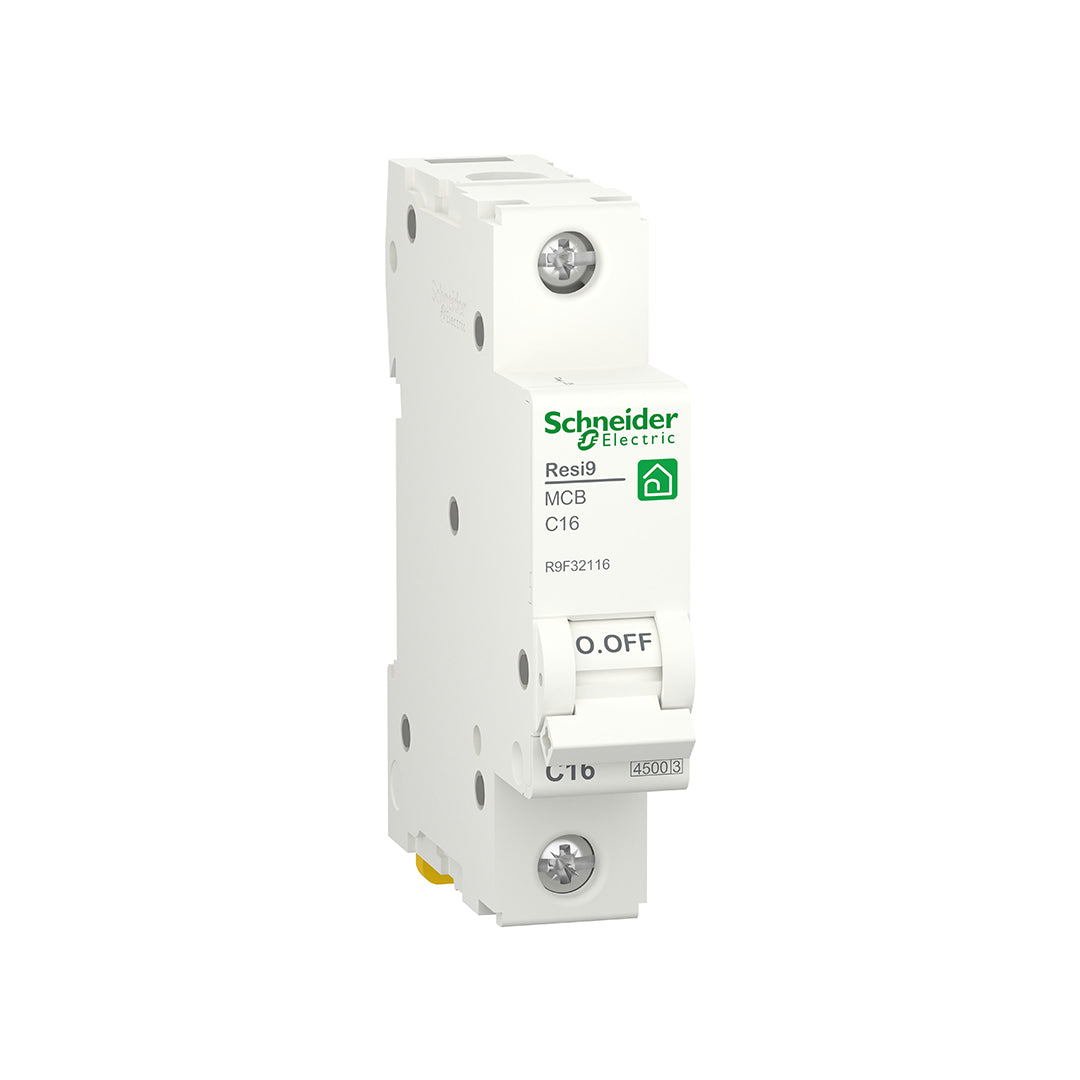

Schneider MCB 16A 1P R9F32116 is an option among the MCB automatic circuit breakers at Bashiti Stores, designed to protect circuits from overloads and short circuits. In this version, the rated current is 16 amps and the number of poles is 1P. These specifications distinguish this model from other alternatives in the same series; match them with your circuit requirements and do not select a higher-rated breaker just to increase the operational margin.
Practical Benefits
- Combines overload and short-circuit tripping functions into a single modular device.
- Distributing protection across independent circuits helps organize the panel and identify the affected circuit when a fault occurs.
- Selecting the correct current, number of poles, and tripping curve provides the basis for matching the breaker with circuit requirements.
Technical Specifications for This Model
| Brand |
Schneider Electric |
| Series |
Resi9 |
| Model Reference |
R9F32116 |
| Rated Current |
16 A |
| Number of Poles |
1P |
| Tripping Curve |
C |
| Breaking Capacity per Source Title |
4.5kA |
| Stated Operating Voltage |
230VAC |
| Dimensions: W x H x D |
18 x 81 x 72 mm |
| Stated Mounting |
DIN Rail |
Who Needs This Product?
Electricians, installation contractors, and homeowners or shop owners who are setting up a new panel or replacing a breaker that matches an existing circuit. The selection depends on the circuit design, cable cross-section, and installation method, not just on the type of device or its physical appearance.
Installation and Verification Procedure — For Professional Technicians
The following steps outline the general work sequence. Use the manufacturer's diagram for reference R9F32116 to determine terminals and torque values. Do not perform work on a live circuit.
- The technician must disconnect all power sources, secure them against accidental reconnection, and verify the absence of voltage with an appropriate tool.
- Match the device reference, number of poles, current, and voltage with the panel diagram; verify conductor cross-sections and protection coordination.
- Mount the device on the rail or its designated spot after confirming compatibility, and identify the supply and output based on the manufacturer's diagram for this reference.
- Perform connections using the tightening torque, stripping length, and wire gauges specified in the model manual; do not copy these values from a similar device.
- Check the tightness of connections and mounts, then close the covers and perform the necessary operational and protection tests before handing over the circuit.
Frequently Asked Questions Before Buying
Does this breaker protect against earth leakage?
An MCB is designed for overload and short-circuit protection and does not replace the need for earth leakage protection. Check the necessity of an RCCB or RCBO within the panel design.
Should I replace a frequently tripping breaker with a higher-amp one?
No. You must first identify the cause of the tripping and inspect the load, cable, and connections. Increasing the amperage without proper assessment may leave wires without appropriate protection.
What is the difference between Amperage and Breaking Capacity?
Amperage is the rated current of the breaker, while breaking capacity describes the level of short-circuit current it can safely disconnect under specified voltage and standard conditions. Do not substitute one for the other.
Order from Bashiti Stores
Discover more in our Electrical Section and Circuit Breakers category. Bashiti Stores — Yousef Bashiti Co., serving individuals, companies, and projects in Jordan. For inquiries about products and quantities, contact us at 0795756898 or visit our Bayader and Wehdat branches in Amman.
For Comparison Within the Category
Also, check out the Schneider MCB 20A 1P R9F32120, and compare specifications to choose what best fits your needs.
