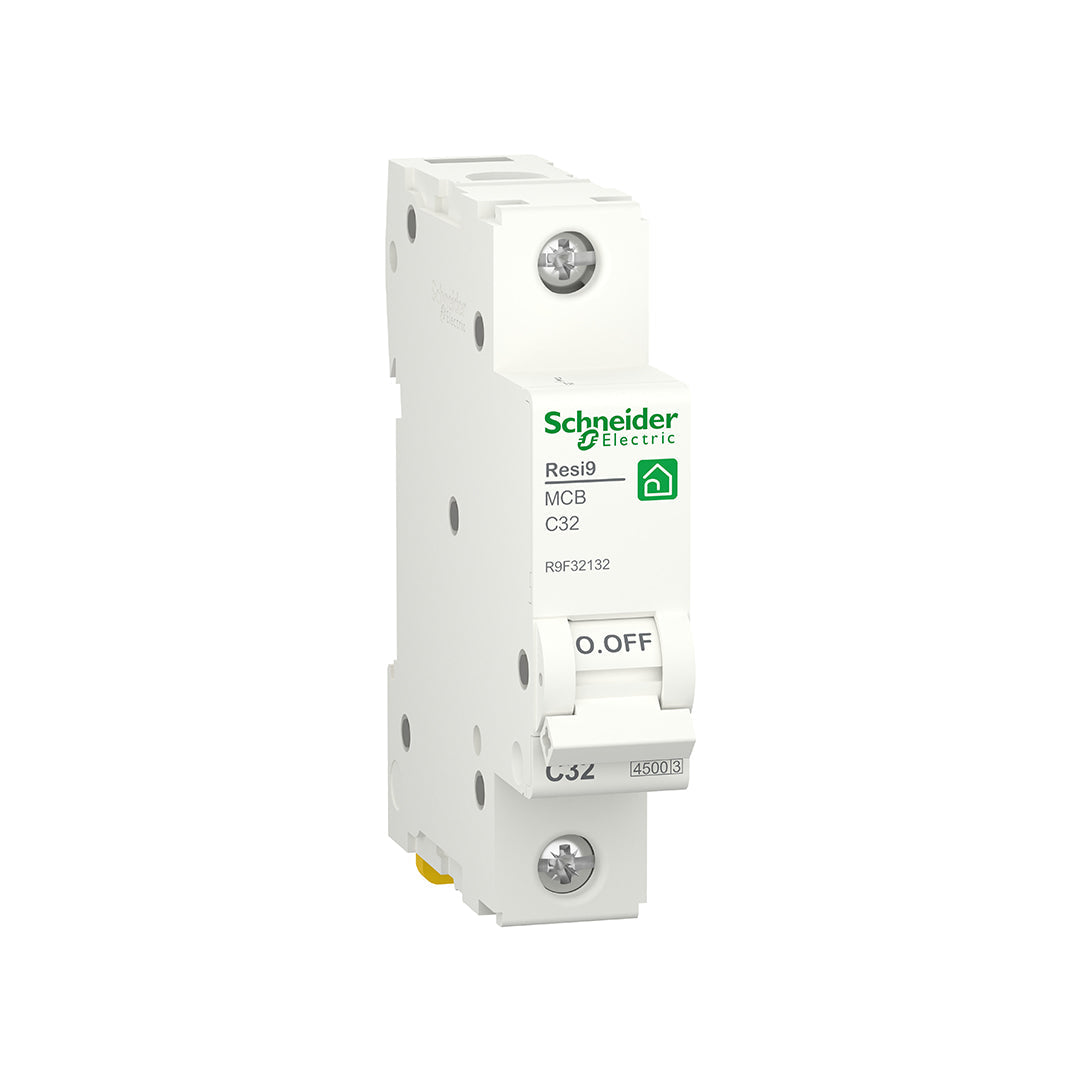

Schneider MCB 32A 1P R9F32132 is an option within the MCB automatic circuit breaker range at Bashiti Stores, designed to protect circuits from overloads and short circuits. In this version, the rated current is 32 Amps and the number of poles is 1P. These specifications distinguish this model from other alternatives in the same series; match them with your circuit requirements and do not choose a higher-rated breaker simply to increase operating margin.
Practical Benefits
- Combines overload and short-circuit tripping functions in one modular device.
- Distributing protection across independent circuits helps organize the panel and identify the affected circuit when a fault occurs.
- Selecting the correct current rating, number of poles, and tripping curve provides a basis for matching the breaker with circuit requirements.
Technical Specifications for This Model
| Brand |
Schneider Electric |
| Series |
Resi9 |
Model Reference |
R9F32132 |
| Rated Current |
32 A |
| Number of Poles |
1P |
| Tripping Curve |
C |
| Breaking Capacity as per source |
4.5kA |
| Rated Operational Voltage |
230VAC |
| Dimensions: W × H × D |
18 × 81 × 72 mm |
| Mounting |
DIN Rail |
Who Needs This Product?
Electricians, wiring contractors, and homeowners or shop owners who are setting up a new panel or replacing a breaker that matches their existing circuit. The choice depends on the circuit design, cable cross-section, and installation method, not just on the device type or the shape of the breaker.
Installation and Verification — For Professional Technicians
The following steps outline the general work sequence; refer to the manufacturer's diagram for reference R9F32132 to identify terminals and torque values. Do not perform work on a live circuit.
- The technician shall disconnect all power sources and secure them against re-energization, then verify the absence of voltage with a suitable tool.
- Match the device reference, number of poles, current, and voltage with the panel diagram, and review conductor cross-section and protection coordination.
- Install the unit on the DIN rail or its designated slot after ensuring compatibility, and identify input/output according to the manufacturer's diagram for this reference.
- Carry out connections according to the tightening torque, stripping length, and wire gauges specified in the model manual; do not transpose these values from a similar device.
- Check the tightness of the mounting and connections, then close the covers and perform the required operational and protection tests before handing over the circuit.
FAQs Before Buying
Does this breaker protect against earth leakage?
The MCB is designed for overload and short-circuit protection and does not replace the need for earth leakage protection. Check the necessity of an RCCB or RCBO within the panel design.
Should I replace a frequently tripping breaker with one of a higher amperage?
No. You must first identify the cause of the tripping and inspect the load, cable, and connections. Increasing the amperage without analysis may leave the wires without appropriate protection.
What is the difference between Amperage and Breaking Capacity?
Amperage is the rated current of the breaker, while breaking capacity describes the level of short-circuit current it can safely disconnect under specified voltage and standard conditions. Do not substitute one for the other.
