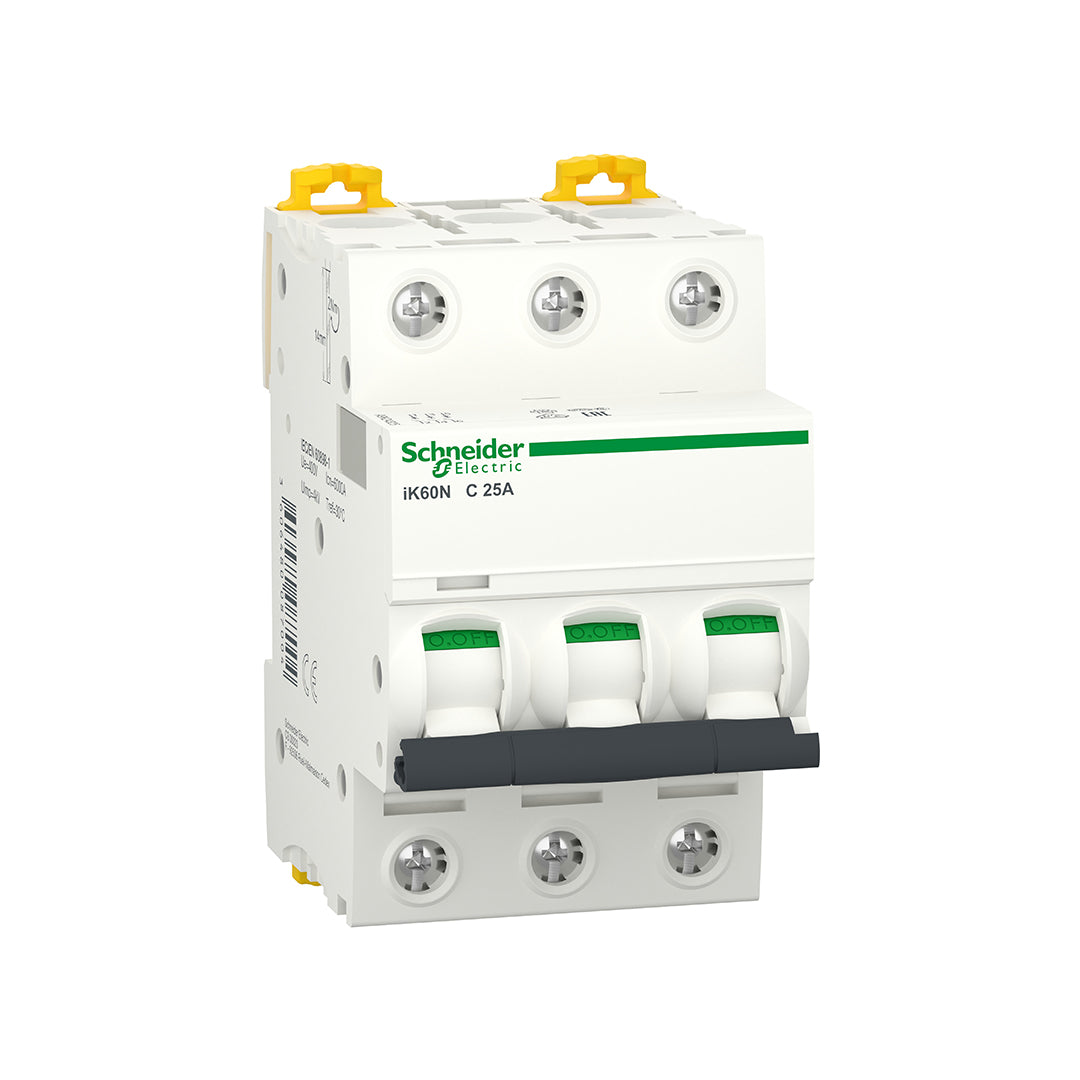

Schneider MCB 25A 3P A9K24325 is an option within the MCB automatic circuit breakers at Bashiti Stores, designed to protect the circuit from overloads and short circuits. In this version, the rated current is 25 Amps and the number of poles is 3P. These specifications distinguish the model from others in the same series; match them with your circuit requirements and do not choose a breaker with a higher current rating just to increase the operating margin.
Practical Benefits
- Combines overload and short-circuit tripping functions in a single standard device.
- Distributing protection across independent circuits helps organize the panel and identify the affected circuit when a fault occurs.
- Selecting the correct current, number of poles, and tripping curve provides a foundation for aligning the breaker with circuit requirements.
Technical Specifications for This Model
| Brand |
Schneider Electric |
| Series |
Acti9 iK60N |
| Model Reference |
A9K24325 |
| Rated Current |
25 A |
| Number of Poles |
3P |
| Tripping Curve |
C |
| Breaking Capacity per Source Title |
6kA |
| Rated Operating Voltage |
400VAC |
| Dimensions: W × H × D |
54 × 85 × 78.5 mm |
| Mounting |
DIN Rail |
Who Needs This Product?
Electricians, electrical contractors, and homeowners or shop owners who are setting up a new panel or replacing a breaker that matches an existing circuit. The selection depends on the circuit design, cable cross-section, and installation method, not solely on the type of device or the shape of the breaker.
Installation and Verification Method — For Professionals
The following steps outline the general workflow. Refer to the manufacturer's diagram for reference A9K24325 to determine terminals and torque values. Do not perform work on a circuit connected to power.
- The technician disconnects all power sources, secures them against reactivation, and verifies the absence of voltage with an appropriate tool.
- Matches the device reference, number of poles, current, and voltage with the panel diagram, and reviews conductor cross-sections and protection coordination.
- Mounts the unit on the rail or its designated position after ensuring compatibility, and identifies the supply and output from the manufacturer's diagram for this reference.
- Executes the connections using the tightening torque, stripping length, and wire gauges specified in the model manual; do not transfer these values from a similar device.
- Checks the tightness of the installation and connections, then closes the covers and performs the required functional and protection tests before handing over the circuit.
Frequently Asked Questions Before Buying
Does this breaker protect against earth leakage?
An MCB is designed for overload and short-circuit protection and does not replace the need for earth leakage protection. The need for an RCCB or RCBO should be reviewed within the panel design.
Should I replace a breaker that trips constantly with one of a higher amperage?
No. You must first identify the cause of the tripping and inspect the load, cables, and connections. Increasing the amperage without study may leave the wires without proper protection.
What is the difference between Amperage and Breaking Capacity?
Amperage is the rated current of the breaker, while breaking capacity describes the level of short-circuit current it can safely interrupt under specified voltage and standard conditions. Do not substitute one figure for the other.
