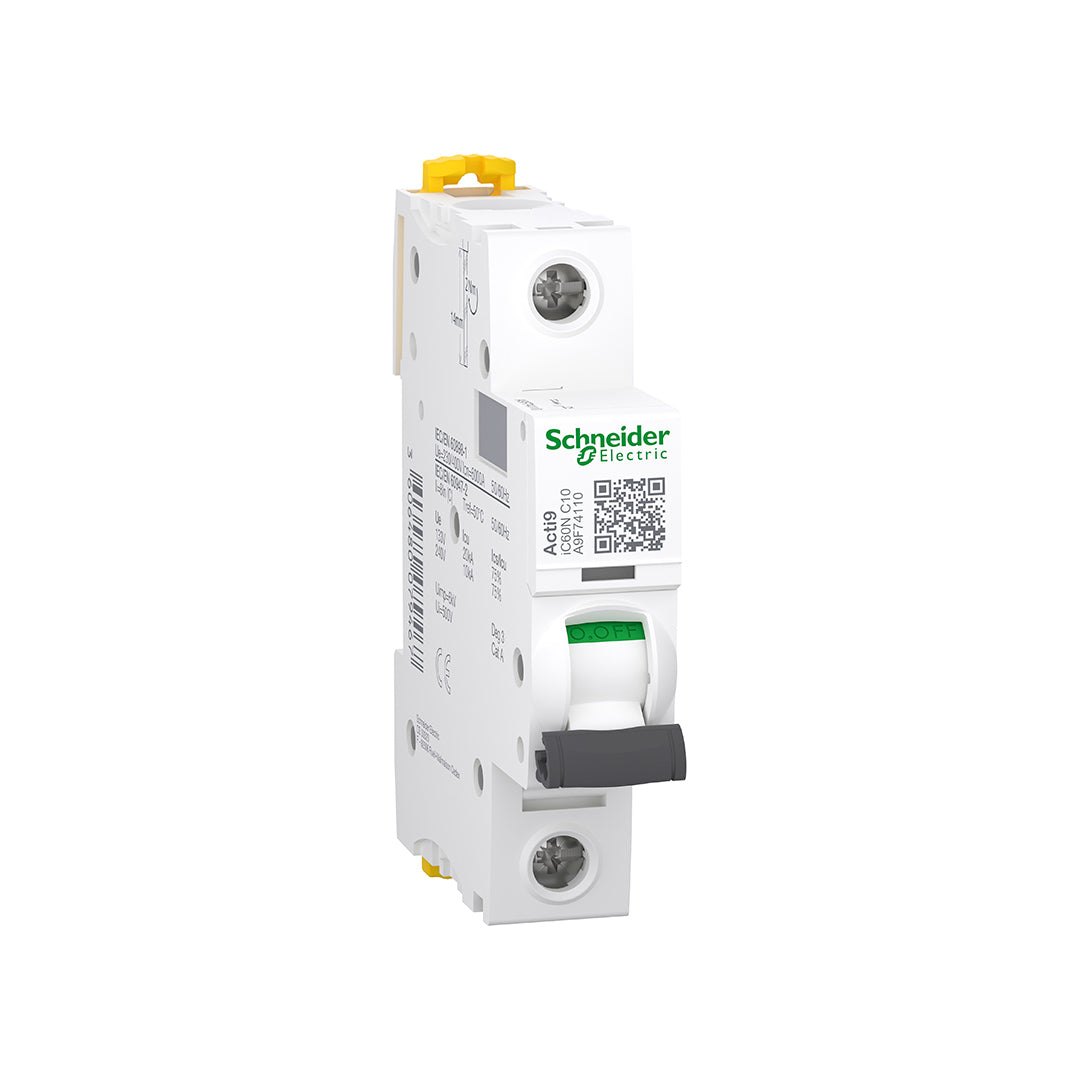

Schneider MCB 10A 1P A9F74110 Circuit Breaker is an option among automatic MCBs at Bashiti Stores, designed to protect circuits from overload and short circuits. In this version, the rated current is 10 Amps and it has 1 pole (1P). This data distinguishes the model from other alternatives in the same series; match it with the circuit requirements and do not select a breaker with a higher current rating simply to increase the operating margin.
Practical Benefits
- Combines the functions of overload and short-circuit protection in a single modular device.
- Distributing protection across independent circuits helps organize the panel and identify the affected circuit when a fault occurs.
- Choosing the correct current, number of poles, and tripping curve provides the basis for aligning the breaker with the circuit requirements.
Technical Specifications for this Model
| Brand |
Schneider Electric |
| Series |
Acti9 iC60N |
| Model Reference |
A9F74110 |
| Rated Current |
10 A |
| Number of Poles |
1P |
| Tripping Curve |
C |
| Breaking Capacity per Source Title |
6kA per IEC/EN 60898-1 and 10kA per IEC/EN 60947-2; review voltage conditions in the manual |
| Dimensions: W x H x D |
18 × 85 × 78.5 mm |
| Mounting |
DIN Rail |
Who needs this product?
Electricians, installation contractors, and homeowners or shop owners who are setting up a new panel or replacing a breaker matching an existing circuit. The choice depends on the circuit design, cable cross-section, and installation method, not just on the type of device or the shape of the breaker.
Installation and Verification Procedure — For Licensed Technicians
The following steps outline the general workflow; the manufacturer's diagram for reference A9F74110 must be used to identify terminals and tightening values. Do not perform work on a circuit connected to power.
- The technician disconnects all power sources, secures them against reactivation, and verifies the absence of voltage with a suitable tool.
- Matches the device reference, number of poles, current, and voltage with the panel diagram, and reviews the conductor cross-section and protection coordination.
- Mounts the unit on the rail or its designated position after ensuring compatibility, and identifies the feed and output from the manufacturer's diagram for this reference.
- Performs connections using the torque, stripping length, and wire gauges specified in the model manual; do not copy these values from a similar device.
- Inspects the installation and connections for tightness, closes the covers, and performs the required functional and safety tests before commissioning the circuit.
Frequently Asked Questions Before Buying
Does this breaker protect against earth leakage?
An MCB is designed for overload and short-circuit protection and does not replace earth leakage protection. Review the need for an RCCB or RCBO within the panel design.
Should I replace a breaker that trips constantly with one of a higher amperage?
No. First, identify the cause of the tripping and check the load, cable, and connections. Increasing the amperage without study may leave the wires without proper protection.
What is the difference between Amperage and Breaking Capacity?
Amperage is the rated current of the breaker, while breaking capacity describes the level of short-circuit current it can safely interrupt under specified voltage and standard conditions. One should not be substituted for the other.
Order from Bashiti Stores
Learn more in our Electrical Supplies and Circuit Breakers sections. Bashiti Stores — Yousef Bashiti Company, serving individuals, companies, and projects in Jordan. For product and quantity inquiries, contact 0795756898 or visit our Bayader and Wahdat branches in Amman.
For comparison within the category
Also check out the Schneider MCB 16A 1P A9F74116, and compare the specifications to choose what suits your needs.
